Surface Resistance Tester - Conductive Anti-Static & Insulation Meter for ESD Mat & Surface Impedance Testing
Surface Resistance TesterSL-030
PRODUCT CHARACTERISTICS
| Item | Specification |
|---|---|
| Model No. | SL-030 |
| Operating Voltage | 9VDC |
| Operating Temperature | 0°C - 45°C |
| Operating Humidity | 0% - 85%RH |
| Accuracy | ±0.25 decade (for static dissipative performance test) |
| Measuring Humidity | 0% - 100%RH |
| Weight | 120g |
| Instrument Dimension | 76mm × 30mm × 137mm |

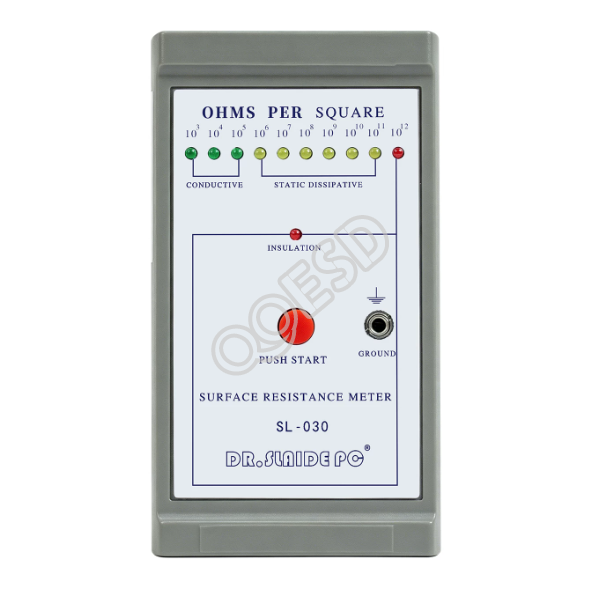

Visual Indication with 3-color LED Lights
No complicated value reading or parameter conversion required. Red, green and yellow LEDs clearly identify material properties.
Operators can read results instantly, avoid manual reading errors and greatly improve batch testing efficiency.
| Green Light | Yellow Light | Red Light |
|---|---|---|
|
10³ — 10鈦
|
10鈦 — 10¹¹
|
10¹² and above
|
