Anti Static Wrist Strap Tester, ESD Wristband Continuity Alarm, Static Wristband Calibrator

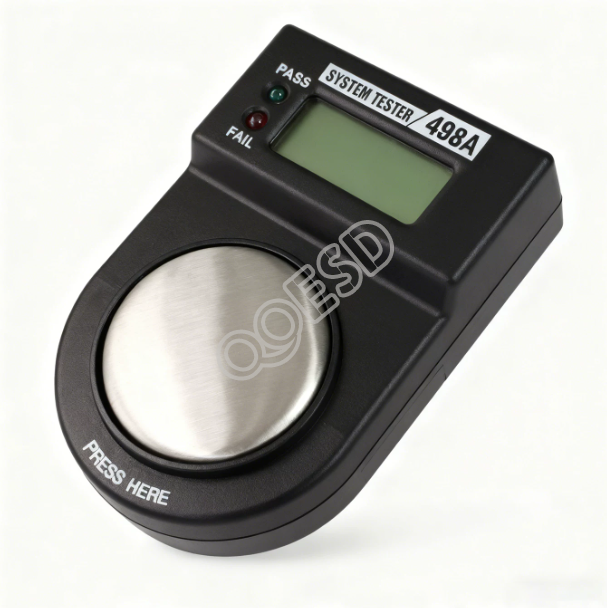

Wrist Strap Tester498A Model with Display

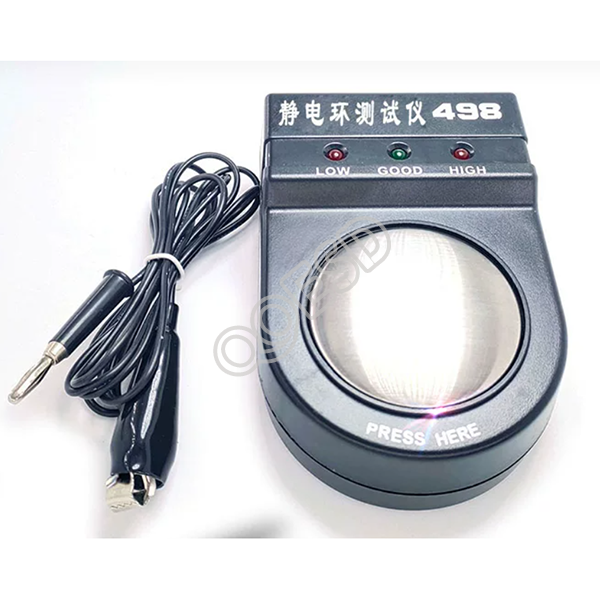

498 Standard Model
498 Standard Model
PRODUCT CHARACTERISTICS
| Indication | Calibration Resistance | Buzzer (Sound) |
|---|---|---|
| LOW (Red) | R ＜ 800KΩ | OFF (×) |
| GOOD (Green) | 800KΩ ≤ R ≤ 9MΩ | ON (✓) |
| HIGH (Red) | R ＞ 9MΩ | OFF (×) |
| Power Supply | DC 9V Battery | |
| Ground Wire Length | 2.5m | |
| External Dimension | 80(W) × 40(H) × 117(D) mm | |
Notes:
Tolerance for lower limit 800KΩ: +10% / −0%
Tolerance for upper limit 9MΩ: +0% / −10%
Operating environment: 0～40℃, 20～90%RH, non-condensing.
