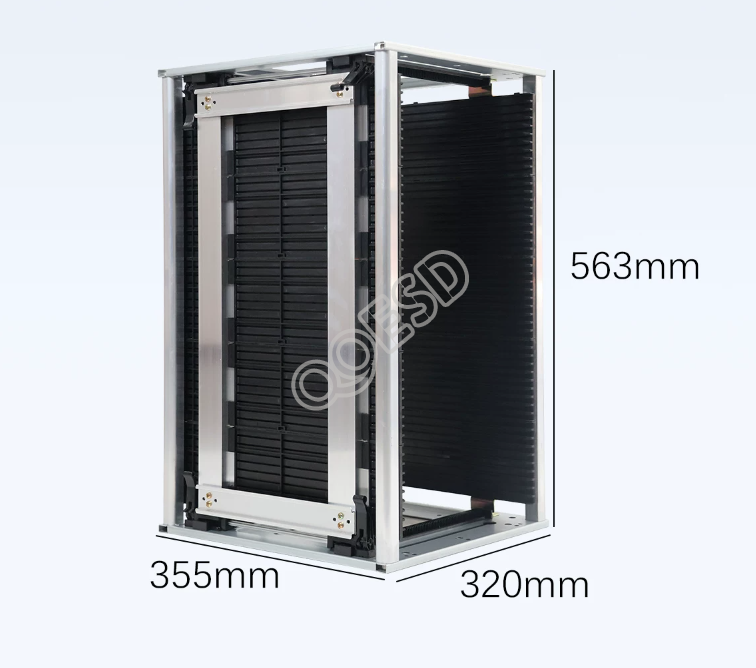

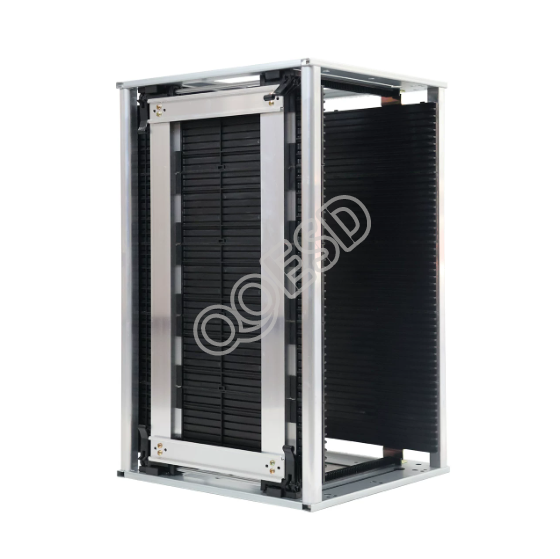

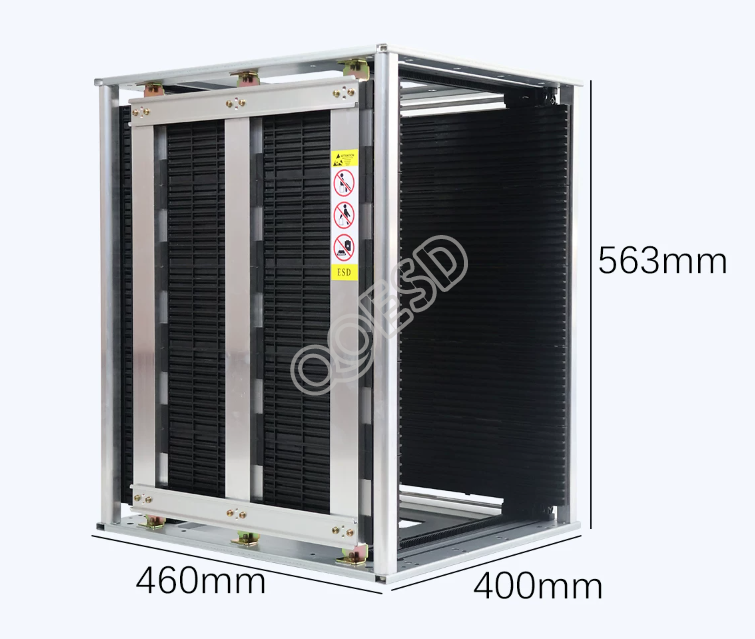

Anti-Static SMT PCB Loading & Unloading Rack | High-Temperature Resistant 50-Layer Circuit Board Magazine Rack

Engineered for high-precision SMT assembly lines, this 50-slot ESD PCB magazine rack ensures static-safe storage and seamless automated loading and unloading for printed circuit boards. Upgraded with all-black ESD components and precise thermal options, it protects sensitive board assemblies throughout handling, buffering, and baking processes.





Key Features & Upgrades

1. Upgraded All-Black ESD Buckles

   - Complete Static Dissipation: Legacy yellow adjustment buckles have been fully replaced with black ESD anti-static buckles, creating a fully conductive path across the entire frame.

   - Component Protection: Eliminates static charge buildup to safeguard sensitive surface-mount devices (SMDs) against electrostatic discharge (ESD) damage.



2. Dual Thermal Spec Options

   Select the ideal side panel material engineered for your heat tolerance and baking requirements:



   Specification                                Standard Version            High-Temp Version

   Momentary Heat Tolerance              Up to 80°C                     Up to 120°C

   Long-Term Storage Temp                 Below 50°C                    Below 80°C



 Technical Specifications

- Slot Capacity:        50 Layers / Slots

- Surface Resistance:   10^4 - 10^9 Ohm (ESD Compliant)

- Applications:         SMT loader/unloader automation, PCB transport, heat processing

- Side Panel Material:  High-rigidity ESD engineering plastic (80°C or 120°C rated)
