ESD Wrist Strap Online Monitor - Real-Time Grounding Tester & Alarm
    • ESD Wrist Strap Online Monitor - Real-Time Grounding Tester & Alarm

    ESD Wrist Strap Online Monitor - Real-Time Grounding Tester & Alarm

    ESD Online Monitor
    Single-station / Dual-station

    * We will reply you within 24 hours.

    PRODUCT CHARACTERISTICS
    Product Overview
    The ESD Wrist Strap Online Monitor provides continuous, real-time grounding surveillance for operators working on ESD-sensitive electronic assembly lines. Designed with high-precision microchip control, it instantly alerts operators and supervisors via visual and audible alarms if a wrist strap becomes loose, disconnected, or improperly grounded. Fully compliant with ANSI/ESD S20.20 and IEC-61340 international standards.

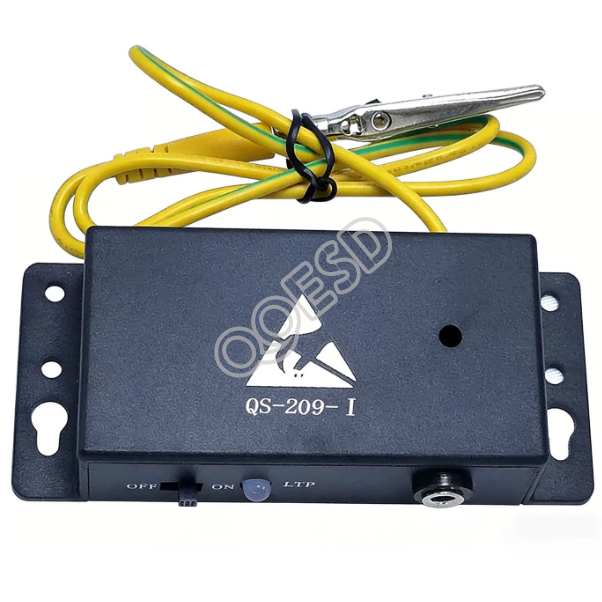

    Model 209-1 (Single-Station)
    Station Configuration: Single Station (1 Operator Port)
    Power Output: AC 6V-9V / 0.3A
    Power Consumption: 1-1.8 W
    Product Dimensions: Max 25 x 120 mm
    Net Weight: 0.18 kg
    Enclosure Options: ABS Plastic or Metal Housing
    Alarm Threshold: 1.4-1.7 M ohm +/- 10% (10K Adjustable)
    Compliance Standards: ANSI/ESD S20.20 and IEC-61340

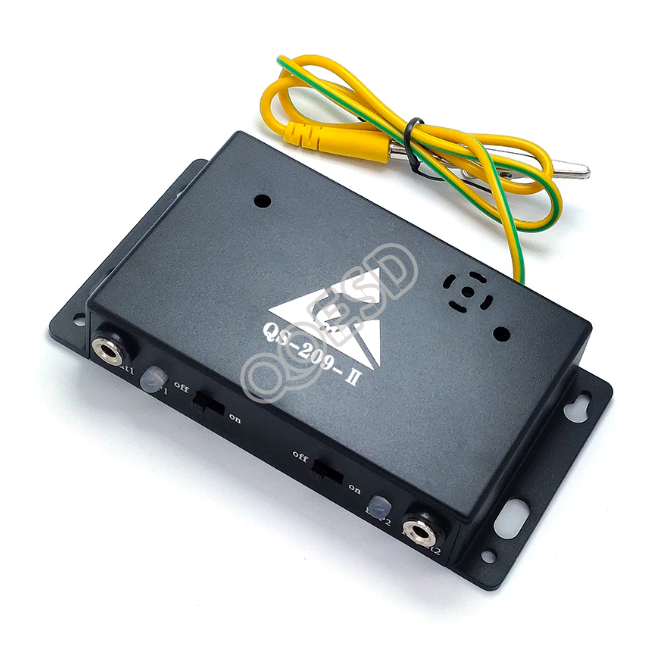

    Model 209-2 (Dual-Station)
    Station Configuration: Dual Station (2 Operator Ports)
    Power Output: AC 6V-9V / 0.3A
    Power Consumption: 1-1.8 W
    Product Dimensions: Max 25 x 150 mm
    Net Weight: 0.20 kg
    Enclosure Options: ABS Plastic or Metal Housing
    Alarm Threshold: 1.4-1.7 M ohm +/- 10% (10K Adjustable)
    Compliance Standards: ANSI/ESD S20.20 and IEC-61340

    Key Features & Advantages
    Continuous Real-Time Surveillance: Drains static electricity in real time and automatically monitors the operator's wrist strap grounding status without interrupting workflow.
    Instant Visual & Audible Alarm: Clear dual-status notification: Green LED indicates normal operation; Red flashing LED with audible buzzer indicates a ground fault or open circuit.
    High Precision & Anti-Interference: Superior reaction speed and strong resistance to electronic noise prevent false alarms.

    Target Applications
    SMT Production Lines & PCB Assembly Workstations
    Soldering, Welding, and Precision Electronic Assembly Stations
    Cleanroom Operator Workstations & Semiconductor Manufacturing
    Medical Electronics & High-Reliability Hardware Manufacturing

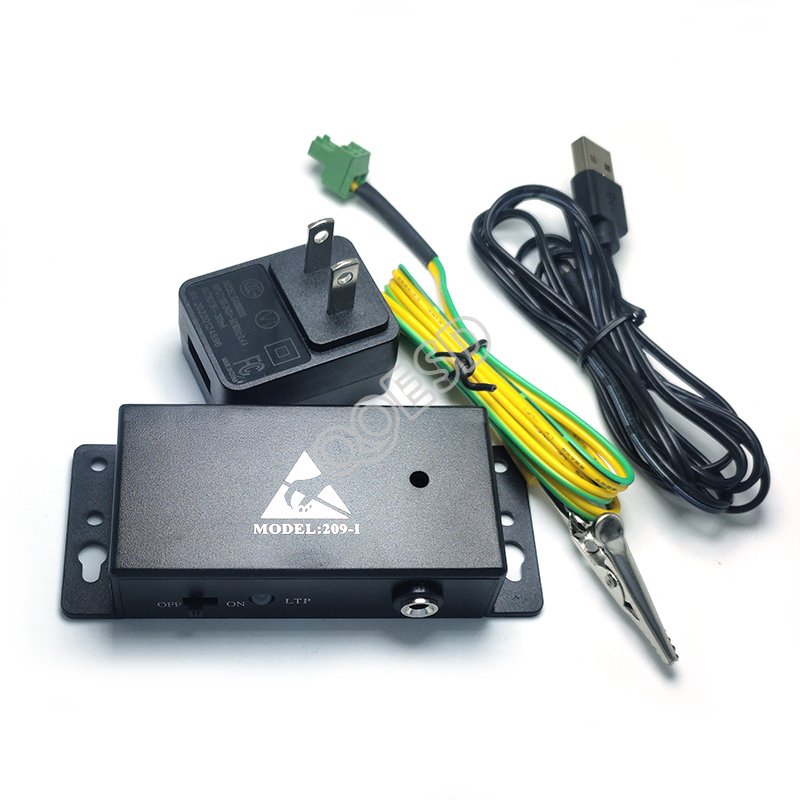

    Package Includes
    1 × ESD Wrist Strap Online Monitor Unit
    1 × AC Power Adapter
    1 × Ground Cable
    Mounting Screws & Brackets
