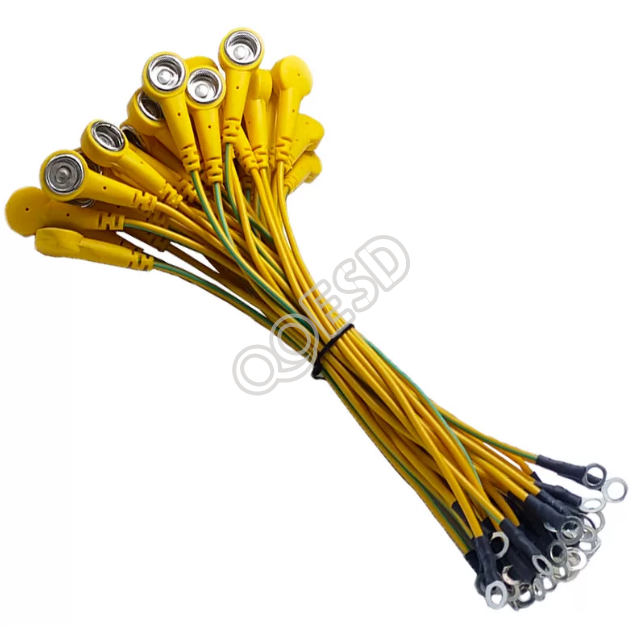

20cm Short ESD Table Mat Grounding Cord with Snap & Ring Terminal

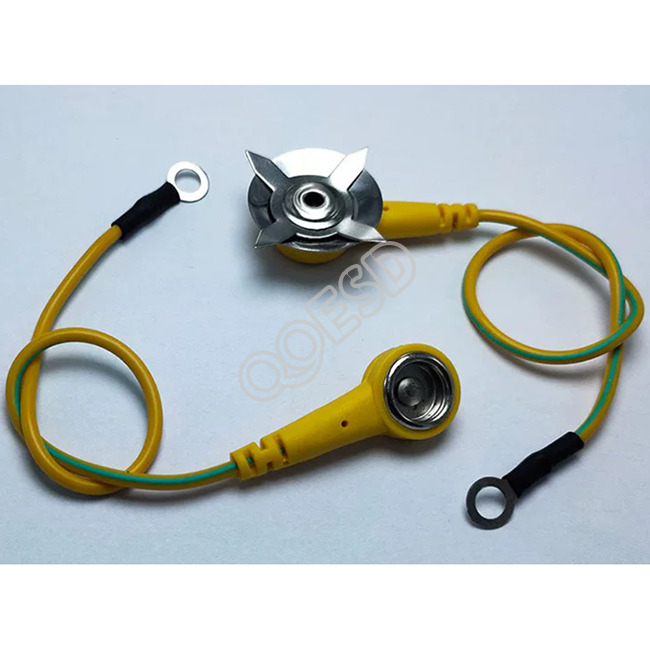

20cm Grounding Cord4-Claw Star Snap + Ring Terminal
Female Snap + Ring Terminal
Female Snap + Ring Terminal
PRODUCT CHARACTERISTICS
Specifications
- Conductor Material: Copper Foil Wire (High Conductivity)
- Cable Material: PVC
- Cable Outer Diameter: 2.5 mm
- Standard Cable Length: 20 cm
- Cable Color: Yellow/Green (Safety Grounding Standard)
Key Features & Advantages
- Premium Copper Core Wire: Built with high-purity multi-strand copper foil wire inside, offering vastly superior conductivity and oxidation resistance compared to standard aluminum foil conductors.
- Integrated Safety Resistor: Features a built-in 1 Mohm resistor to limit current flow and protect both sensitive equipment and operators.
- Rapid Static Discharge: Swiftly drains static charges built up on workbench mats, machinery, or operators.
- Durable Injection Molding: Precision-molded strain relief design prevents cord strain, bending breakage, and terminal fatigue.
- Easy Installation: Compact short-length design keeps the workbench tidy and enables direct interconnection between ESD mats and ground terminals.
